Description

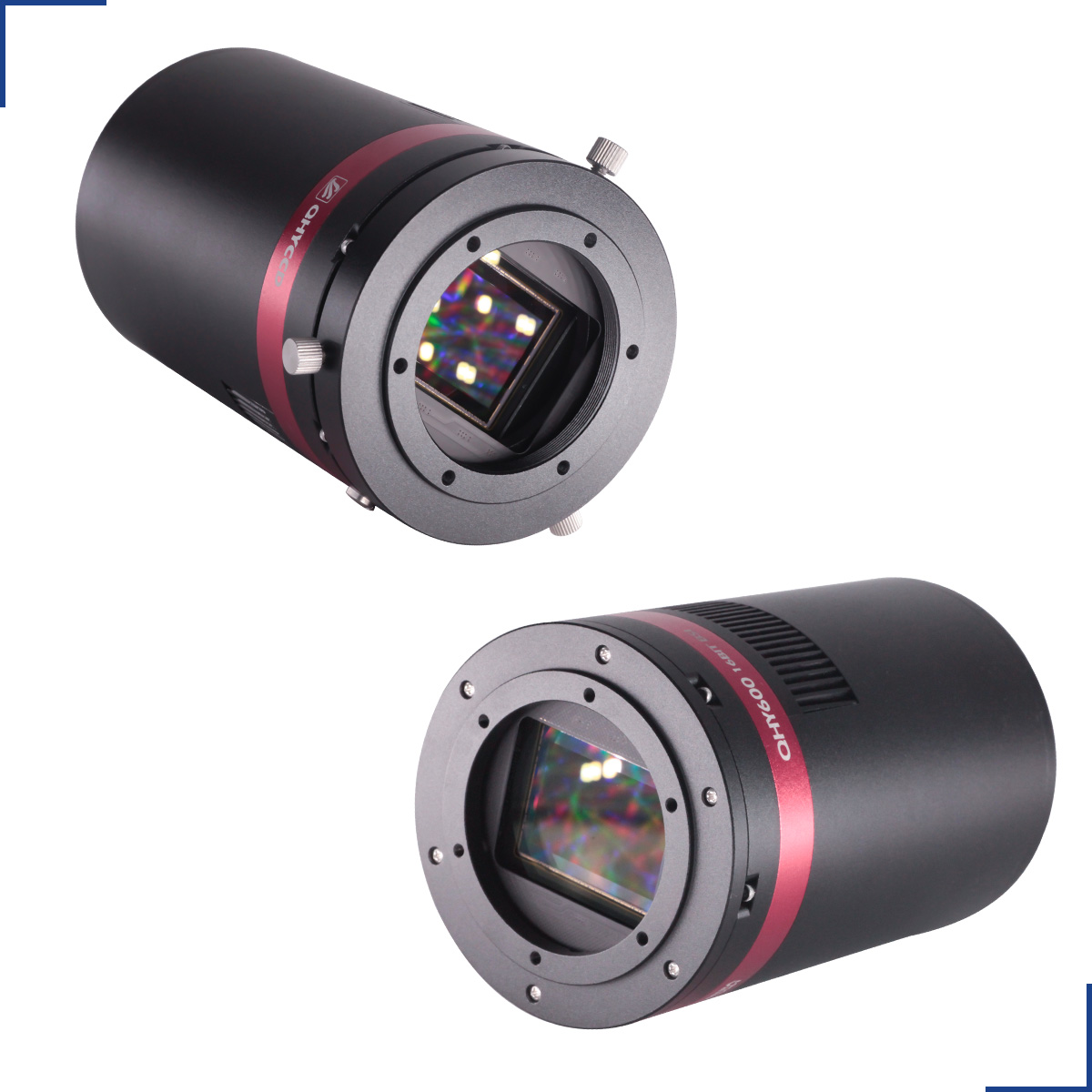

This kit from QHY combines the 600 Monochrome Photographic camera with a CFW3L large Filter Wheel. Available with either the standard QHY600M-PH model or the short back-focus SBFL model.
For more information on component parts, see individual pages for the and
For QHY600, the match we recommend is CFW3L and OAGM. If you have special requirement for short back focal length, like using Canon EF Lens (44.1mm BFL), Nikon F Lens (46.5mm), or using 55mm MPCC with both CFW and OAG, we recommend QHY600 SBFL version as the only choice.
| Model | BFL Consumed | Filters Supported |
| QHY600M PH/Lite | 17.5mm | 7 position
2inch mounted/50mm unmounted |
| QHY600M SBFL | 12.5mm | |
| CFW3L | 21.5mm |
Here are the combo we recommend for the QHYCCD Astronomy Camera QHY600. Compared with purchasing them seperately, you can get a discount about 5% off for the combo.
Specifications
Camera
| Model | QHY600PH (Photographic Version)
QHY600PH SBFL (Short Back Focal Length Version) |
| CMOS Sensor | SONY IMX455 |
| Mono/Color | Both Available (while Mono only with QHY600PH-L) |
| FSI/BSI | BSI |
| Pixel Size | 3.76um x 3.76um |
| Effective Pixel Area | 9576*6388
（9600*6422 with overscan and optically black area) |
| Effective Pixels | 61.17 Megapixels (effective area. |
| Sensor Size | Full Frame 36mm x 24mm |
| A/D Sample Depth
| 16-bit (0-65535 levels) at 1X1 binning
18-bit at 2X2, 19-bit at 3X3, 20-bit at 4X4 software binning *QHY600 uses the software digital binning for 2*2binning. With digital sum, 2*2binning will be four 16-bit summed then it is 18-bit. |
| Full Well Capacity (1×1, 2×2, 3×3) | Standard Mode >51ke- / >204ke- / >408ke- Super Full Well Mode >80ke- / >320ke- / >720ke- |
| Full Frame Rate | USB3.0 Port Image Transfer Speed
Full Frame Size: 4.0FPS (8-bit output) Full Frame Size: 2.5FPS (16-bit output) 7.2FPS at 9600×3194, 22.5FPS at 9600×1080, 28FPS at 9600×768, 47FPS at 9600×480, 160FPS at 9600×100, Fiber Port Image Transfer Speed (QHY600Pro only) Full Frame Size: 4.0FPS (16-bit output) |
| Readout Noise | 1.0e- to 3.7e- (Standard Mode) |
| Dark Current | 0.0022e-/p/s @ -20C 0.0046e-/p/s @ -10C |
| Exposure Time Range | 40us – 3600sec |
| Unity Gain* | 25 (Extended Full Well Mode) *
*With the improvement of the CMOS technology, the 16bit CMOS camera has been released, like QHY600/268/411/461. For these cameras, even in lowest gain it has beyond the requirement of unit gain (less than 1e/ADU due to sufficient samples) So you can directly set gain 0 as start. Please note QHY600/268C/411/461 has extend full well mode. In this mode you still need to find out the unit gain position. |
| Amp Control | Zero Amplifer Glow |
| Firmware/FPGA remote Upgrade | Supported. Via Camera USB Port |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | DDR3 memory
PH & PH SBFL ver.: 2GBytes（16Gbit |
| Hardware Frame Sequence Number | Supported |
| Cooling System | Dual Stage TEC cooler: – Long exposures (> 1 second) typically -35C below ambient – Short exposure (< 1second) high FPS, typically -30C below ambient（Test temperature +20°） |
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Anti-Dew Heater | Yes |
| Telescope Interface | M54/0.75 |
| Back Focal Length | QHY600PH: 17.5mm+6mm (±0.2)
QHY600SBFL: 14.5mm* *The BFL Consumed equals 12.5mm when connecting QHYCFW. About the defination of “BFL Comsumed” and our adapter system please view: https://www.qhyccd.com/adapters/ |
| Weigth | 850g |
| Power | 40W/100% 20W/50% |
Filter Wheel
Back Focus Consumed | 21.5mm |
Filter Supported | 7 posiition 2inch mounted/50mm unmounted |
Available height limitation | 10mm |
Weight | 911g |
