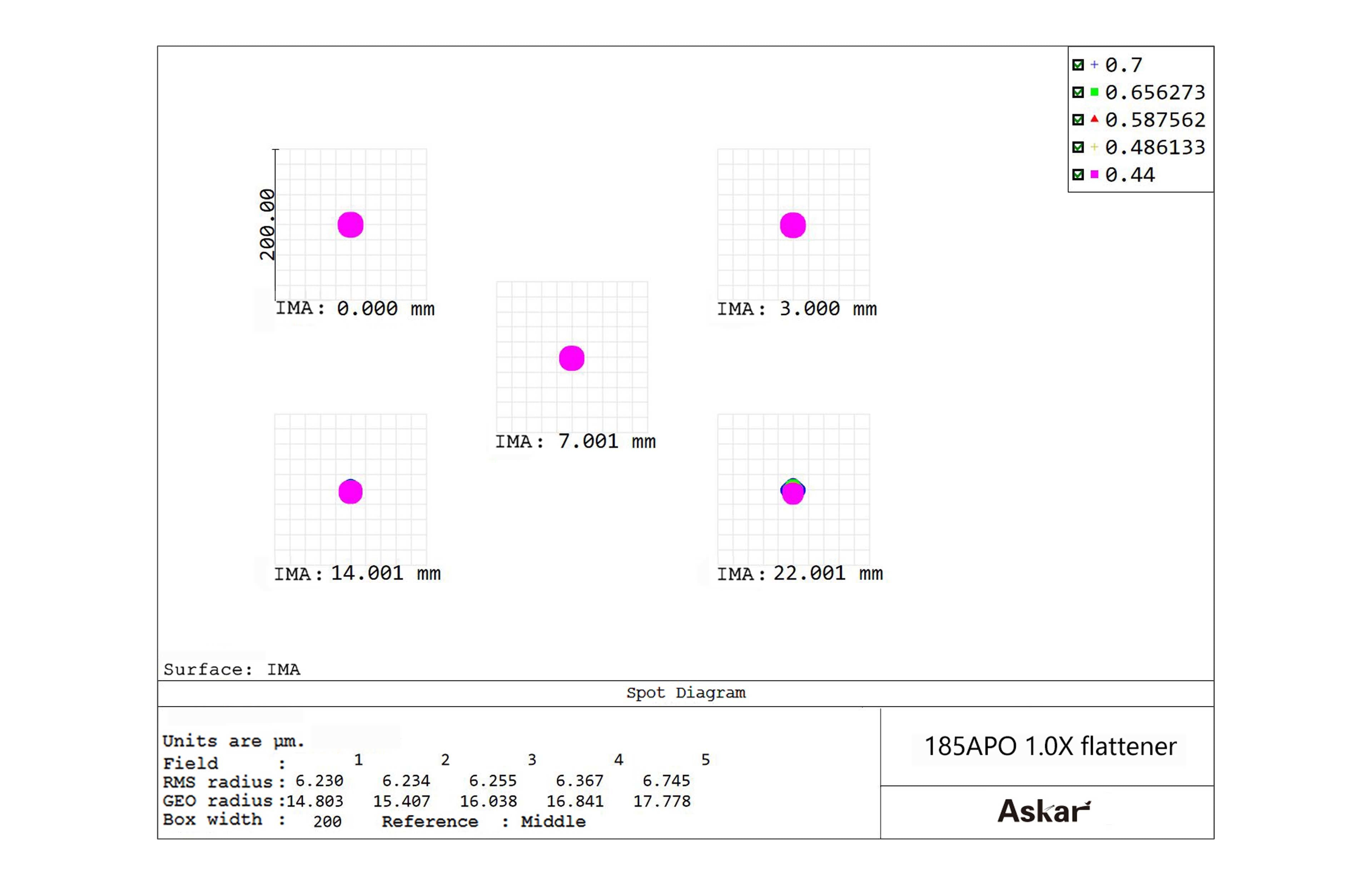

The 1.0x flattener does not change the telescope's focal ratio itself. After connecting with the Askar 185APO, it still maintained a focal ratio of 7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

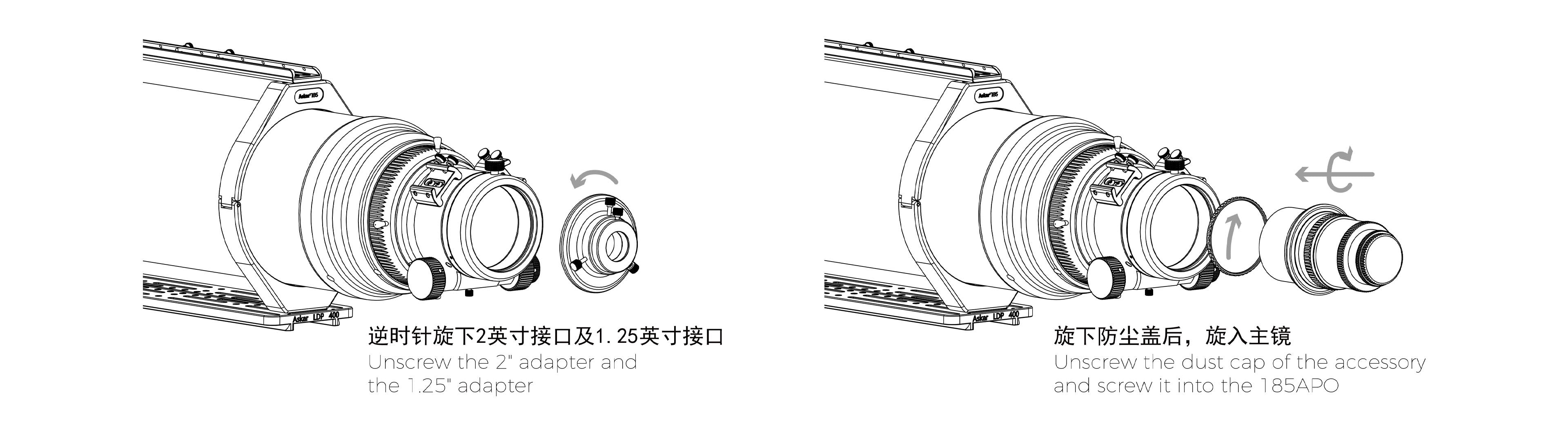

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.79kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M68*1, M54*0.75, and M48*0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications
（After attaching）185APO Focal length | 1295mm | |
（After attaching）185APO Focal ratio | f/7 | |
Lens Number | Triplet design | |
Back Focus | 55mm（from the base of M48 male thread） | |
Weight | kg | |
Rear-end thread type | M68×1 | |
