Description

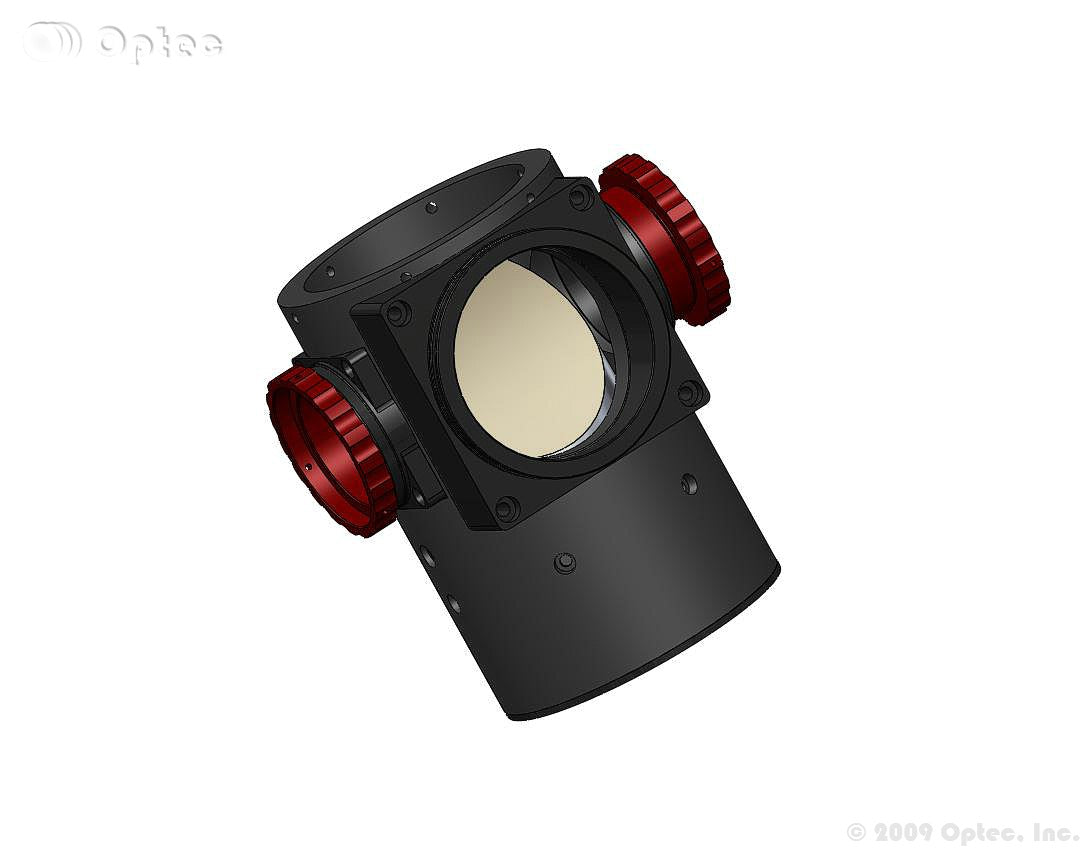

Optec's new 4-port Instrument Selector allows the remote observatory user the ability to remotely select any of four instrument packages attached to their telescope.

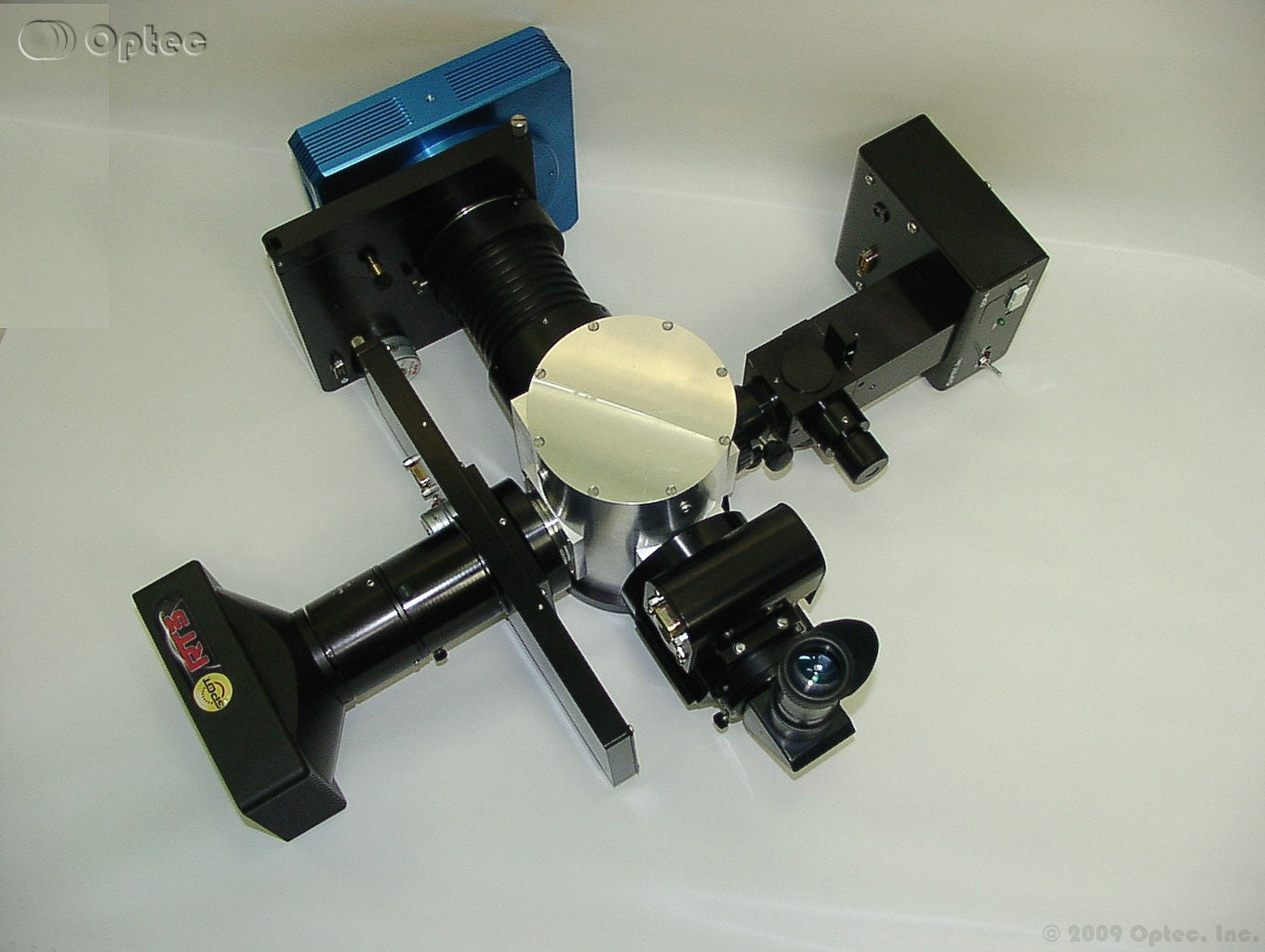

This is Optec's new 4-port instrument selector.   The photo shows a top view of the selector with two different CCD cameras, a single channel SSP photometer, and a separate TCF-S focuser and eyepiece.  Any variety of instrument packages can be configured and used.

The 4-port selector is being demonstrated in the video below on a Meade 8-inch Schmidt Cassegrain telescope. However, it's really designed for at least a C11 class telescope. This is a robust design and intended for permanent observatory instruments only.

Specifications

• Overall Height: 7.00" (17.8cm)
• Main Body Diameter: 4.25" (10.8cm)
• Weight: approx. 5 lb. (2.25 kg)
• Telescope Adapter: OPTEC-3600 Female Dovetail Mount
• Instrument Ports: Three 2-inch & One 3-inch
• Primary Port #1:
  • Mechanical Interface:  OPTEC-3600 Male Dovetail
  • Clear Aperture:  3.0" (76mm)
  • Back-focus usage:  4.5" (11.4 cm)
• Secondary Ports #2, #3, #4:
• Primary Mechanical Interface: OPTEC-2400 Male Dovetail
• Clear Aperture: 2.1" (53mm)
• Back-focus usage:  4.3" (11.0cm)
• Secondary Interface: Knurled Parfocal adjusting OPTEC-2300 Receiver
• Clear Aperture: 1.9" (48mm)
• Back-focus usage:  5.0" to 5.5" (12.7cm to 14cm)
• Total Parfocal Travel:  0.5" (12.7mm)
• Mounting Options: T-thread, SCT thread, C-mount, Pentax
• Control Interface: Push-button Selection
• Communications Interface: RS-232 serial with DB9 connector
• Software Interface: Dedicated Applet and serial command interface
