Description

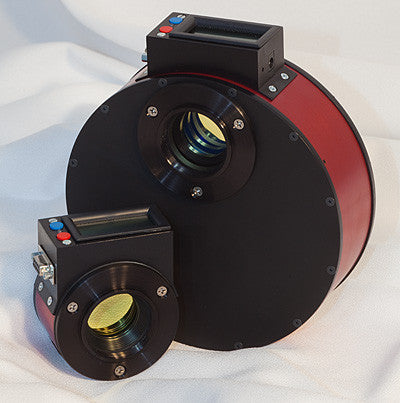

Accept no compromises. Switch from Hydrogen Alpha to Sodium to Helium to Calcium and back again, effortlessly and accurately, using just one telescope. The DayStar Filters "Solar System" filter wheel allows you to view the Sun through up to four different filters with just the touch of a button. Each filter still has full +/- 1Å wing shift tuning capability, and the renowned Quantum precision control.
Any of the DayStar wavelengths, bandpasses, or quality combinations can be used. We can even load custom wavelengths for research applications. Call or email us to discuss your needs. Some of the possible combinations:
- Visual Observer's set: H-Alpha 0.6Å SE, Calcium-H 5.0Å SE.
- Imager's set: H-Alpha 0.5Å PE, Sodium-D1 0.4Å PE, Calcium-K 2.0Å PE.
- Prominence doppler set: Three H-Alpha 0.7Å PEs at wing shifts of -0.5, 0, and +0.5 Å.
- Research set: H-Alpha 0.4Å PE, Helium D3 0.3Å PE, Sodium D1 0.4Å PE, Calcium-K 2.0Å PE.
The Solar System filter wheel is great for outreach and education, as the behaviors of different elements and features on the Sun can be quickly compared. The savings of not having to purchase a second or third solar telescope, and the quicker set up and take down times add up to big advantages.
Already have a DayStar? We can move your existing Quantum, ATM, or University filters into the new housing. T-Scanner or SolaREDi owners can make use of the DayStar trade-up policy to lower the cost of entry.
Budget tight? Start with just two positions filled, then return it to the factory to add more filter positions at any time.
Total flexibility with no compromises. The DayStar Solar System filter wheel.
Prices:
Move existing user-provided filters into filter wheel: $4,950.
Example packages:
: $19,000
.7Å SE Ha / .5Å SE Ha / 5Å Ca II H / 2Å Ca II K: $21,250
.7Å PE Ha / .5Å PE Ha / 5Å Ca II H / 2Å Ca II K: $26,750
.7Å SE Ha / .4Å PE Ha / 5Å Ca II H / .3Å PE He D3: $35,950
Note: additional cost for pupil plane applications.
Delivery time: current wait 6 months.
Specifications
Specifications:
| Dimensions | 7" x 7.75" x 2.3" (178 x 197 x 58mm) |
| Weight | 5 lb 2 oz (2.3 kg) when fully loaded. |
| Mounting | Accepts standard Quantum plates, providing mounting to T-thread, SCT thread, or 2" drawtube, for use with eyepieces or cameras. |
| Power | 10 to 30VDC, 2.5 amps. International AC adapter included with choice of US, UK, European, or Australian power cords. |
| Positions | Minimum two, maximum four. |
| Filter change time | Less than three seconds. |
| Telescope compatibility | Refractor, SCT, Maksutov (if sufficient focus travel). Any aperture: 60mm, 90mm, 155mm, or more! Apochromatic refractor recommended for best results, achromats may require slight focus adjustment when changing positions. |
| Focal ratio | Best performance at F/30. Recommended range: F/27-F/35. |
| Remote control | RS-232 serial port required. Quantum Control software for Windows, or communication protocol available for programmers to utilize on other operating systems. |
