Description

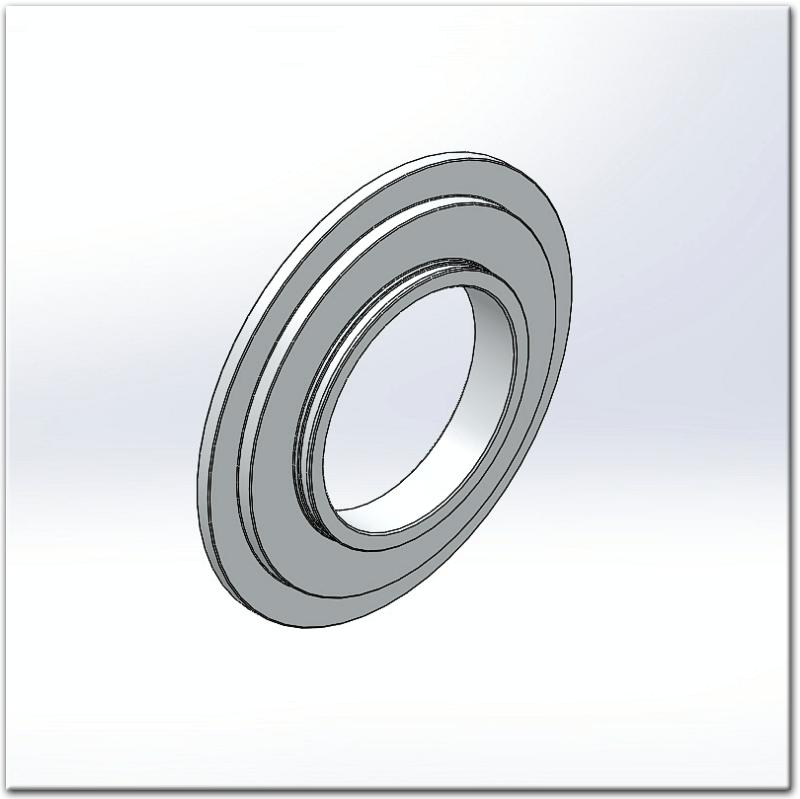

The #19842 adapter fits beneath the Planewave pinch-plate on the 14-inch and large CDK telescopes. This adapter allows attachment of Optec's Gemini Focusing Rotator or TCF-Lynx3 Gen2 3-inch focuser.
Special Note: for the very lowest profile mounting of the Gemini, Optec recommends replacing the socket cap screws holding Planewave's pinch-plate in place with flat-head screws. This requires countersinking the holes on the pinch-plate.
Specifications
| Inside Diameter: | 3.74" (95mm) |
| Outside Diameter: | 7.125" (181mm) |
Overall Height: | 0.81" (20.7mm) |
| Clear Aperture: | 3.74" (95mm) |
| Weight: | 1 lb. 4 oz (555 g) |
| Back-Focus Usage: | 0.25" (6.35mm) |
| Telescope Side Connection: | Planewave Pinch-Plate |
The #19842 adapter converts Planewave 14" and larger OTA to a male OPTEC-4300 dovetail standard.
Compatibility
19842 | PlaneWave Low-Profile adapter to OPTEC-4300. Fits under the large pinchplate () for the 14-inch and larger OTA. Presents male 4300 dovetail for Gemini. Approximately 1/2" thick. | |
19842-12.5 | PlaneWave Low-Profile adapter to OPTEC-4300. Fits under the large pinchplate () for the 12.5-inch CDK OTA. Presents male 4300 dovetail for Gemini. Approximately 1/2" thick. |
Telescope Compatibility:
Planewave 14-inch CDK telescope,
Planewave 17-inch CDK telescope,
Planewave 20-inch CDK telescope,
Planewave 24-inch CDK telescope.
Device Compatibility:
Gemini Focusing Rotator,
TCF-Lynx3 Gen2 focuser (mfg. after Jan. 2018),
Any OPTEC-4300 receiver adapter.
The #19842 adapter converts Planewave 14" and larger OTA to a male OPTEC-4300 dovetail standard.
