Description
QHY OAG - Thin and Flexible Setup
The main purpose of the OAG is to use the same optical path as the main camera. This avoids the problem of differential deflection that can occur when using a separate optical system for guiding. This method provides more accurate guiding and sharper images.
QHYOAG includes a precision 1.25-inch helical focuser that accepts our QHY5II and QHY5III cameras. The focusing process is comfortable. After focusing, you can lock the focus mechanism with thumbscrews.

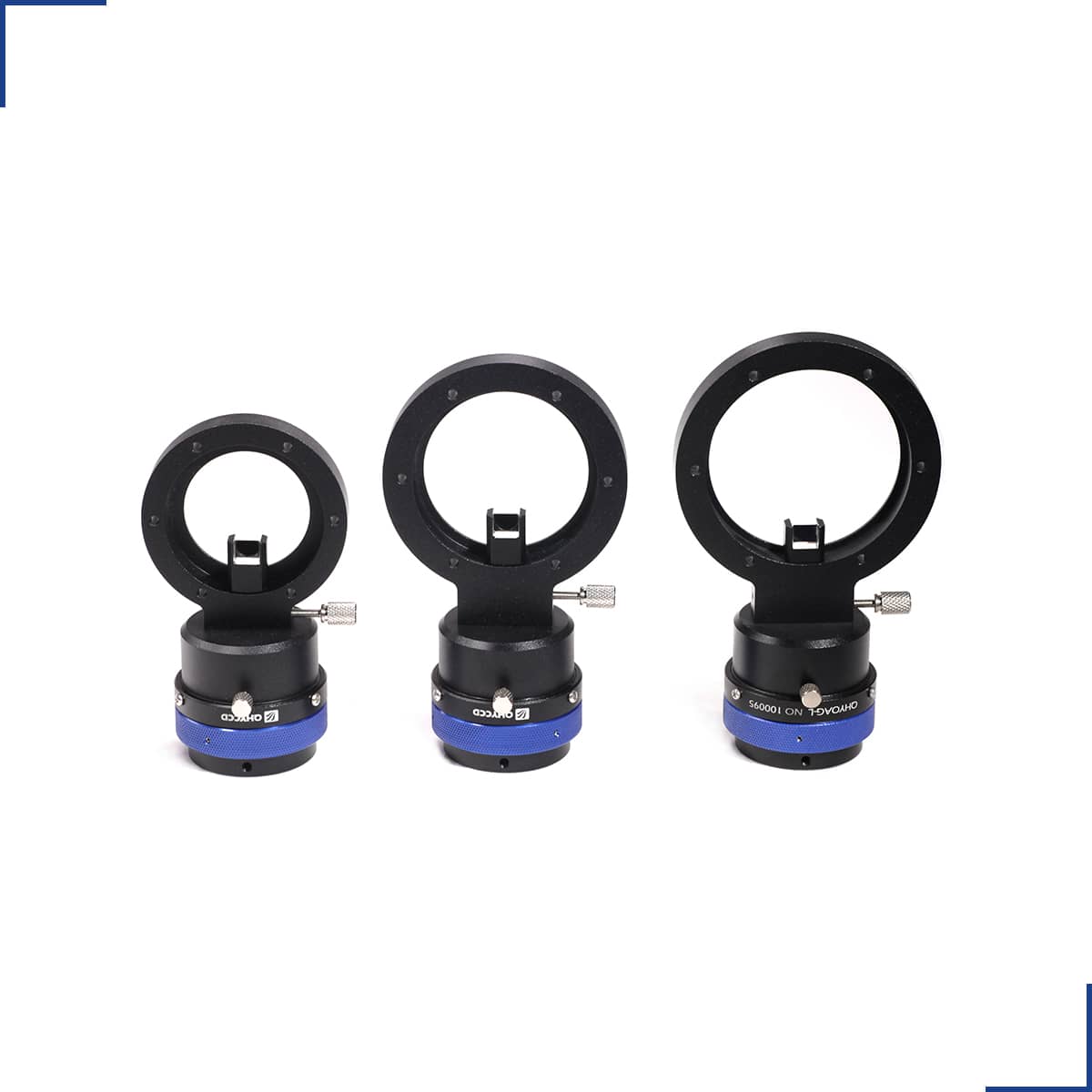

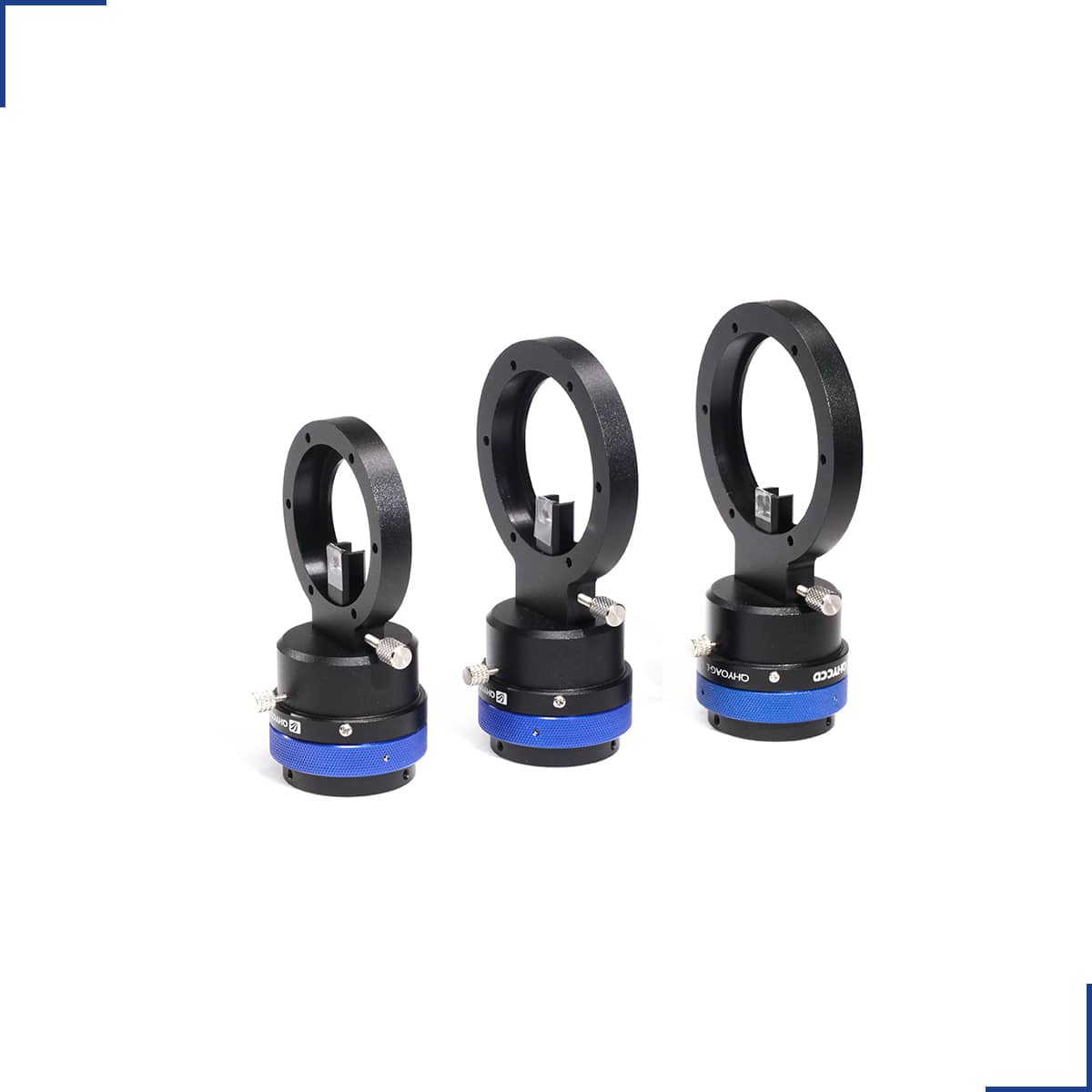

QHYOAG has three models. The major difference is its different diameter. The three model are QHYOAG-S,QHYOAG-M,QHYOAG-L. QHYOAG is a thin and solid design. The OAG main body is just 10mm thick. Adding an M42 thread or M54 adapter ring adds only 3mm for a total thickness of 13mm. There are six 3mm through holes in the OAG for direct connection to the QHYCFW and QHY A Series cameras
Specifications
| Model | QHYOAG-S | QHYOAG-M | QHYQAG-L |
| Telescope Interface | M42/0.75 | M54/0.75 | M62/0.75 |
| Diameter of 6 x M3 screw hole positions | 54mm | 62mm | 68mm |
| Suitable for CCD/CMOS Size | 1inch or smaller | 4/3 inch
APS-C, APS-H, 36 x 24mm | Larger than Full Frame |
| Compatible Products | CFW3-S，
QHY183M QHY5III Series QHY90A QHY695A | QHY16200A
CFW3-M CFW3-L QHY268M/C QHY600M/C QHY294Pro M/C QHY163M QHY128C/247C/367C/168C/410C | CFW3XL
QHY16803 QHY09000 |
| Guide Camera Interface | 1.25-inch | 1.25-inch | 1.25-inch |
| Weight | 127g
| 145g | 149g
|
| Reference Price | USD180 | USD230 | USD280 |
