Description

How do you adapt to your telescope?

Over the years, Optec has developed dozens of adapters and custom fittings for various telescopes and mounts. Our most common telescope adapters are based upon a circular dovetail mount in three different sizes.

• OPTEC-2400 mount - our standard 2.4-inch diameter circular dovetail mount
• Telescope Adapters for the TCF-S and IFW
• The OPTEC-2400 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any telescope. If your scope or accessory is not listed, do not hesitate to call.
• OPTEC-3600 mount - our larger, 3.6-inch diameter circular dovetail mount
• Telescope Adapters for the TCF-S and IFW
• The OPTEC-2400 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any telescope. If your scope or accessory is not listed, do not hesitate to call.
• OPTEC-4300 mount - our newest, 4.3-inch diameter circular dovetail mount
• Telescope Adapters for the Gemini Focusing Rotator
• The OPTEC-4300 circular dovetail mount has been specially made to accommodate certain OEM low-profile versions of the TCF 3-inch series focuser bodies. These flush mount adapters allow the 3-inch drawtube of the TCF-S3 to pass inside the adapter for reduced overall length.  The new Gemini Focusing Rotator also uses this same dovetail standard for both telescope and camera side connections.

Generally, the OPTEC-2400 mount can be used to attach our 2-inch accessories such as the TCF-S and IFW. Likewise, the OPTEC-3600 mount can be used to attach our 3-inch accessories such as the TCF-S3 or Pyxis 3". The OPTEC-4300 mount is reserved for certain OEM TCF-S3 focusers and the Gemini Focusing Rotator.

• Threaded Telescope Adapters
• Responding to recent requests for threaded adapters and fittings, Optec has introduced a new line of adapters and extension tubes designed around the Astro-Physics 2.7-inch thread specification and the new, larger Deep Sky Instruments DSI 3.5 thread spec.

• AP 2.7-inch Telescope Adapters and Extensions
• DSI 3.5-inch Telescope Adapters and Extensions

OPTEC-2400 Telescope Adapters

OPTEC-2400 Dovetail Mount

• Telescope Adapters for the TCF-S and IFW

Optec 2.4" Dovetail Mount
The OPTEC-2400 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any telescope. If your scope or accessory is not listed, do not hesitate to call. These adapters are required to fit the TCF-S and IFW 2-inch models to various telescopes. One end has the necessary fittings for the particular telescope and the other has a protruding ring with dovetail groove. The three #8-32 setscrews in the TCF-S or IFW clamp down on this ring. Adapters are also compatible with the TCF-S. Most mounts are made from high strength 6061 aluminum alloy and black anodized.

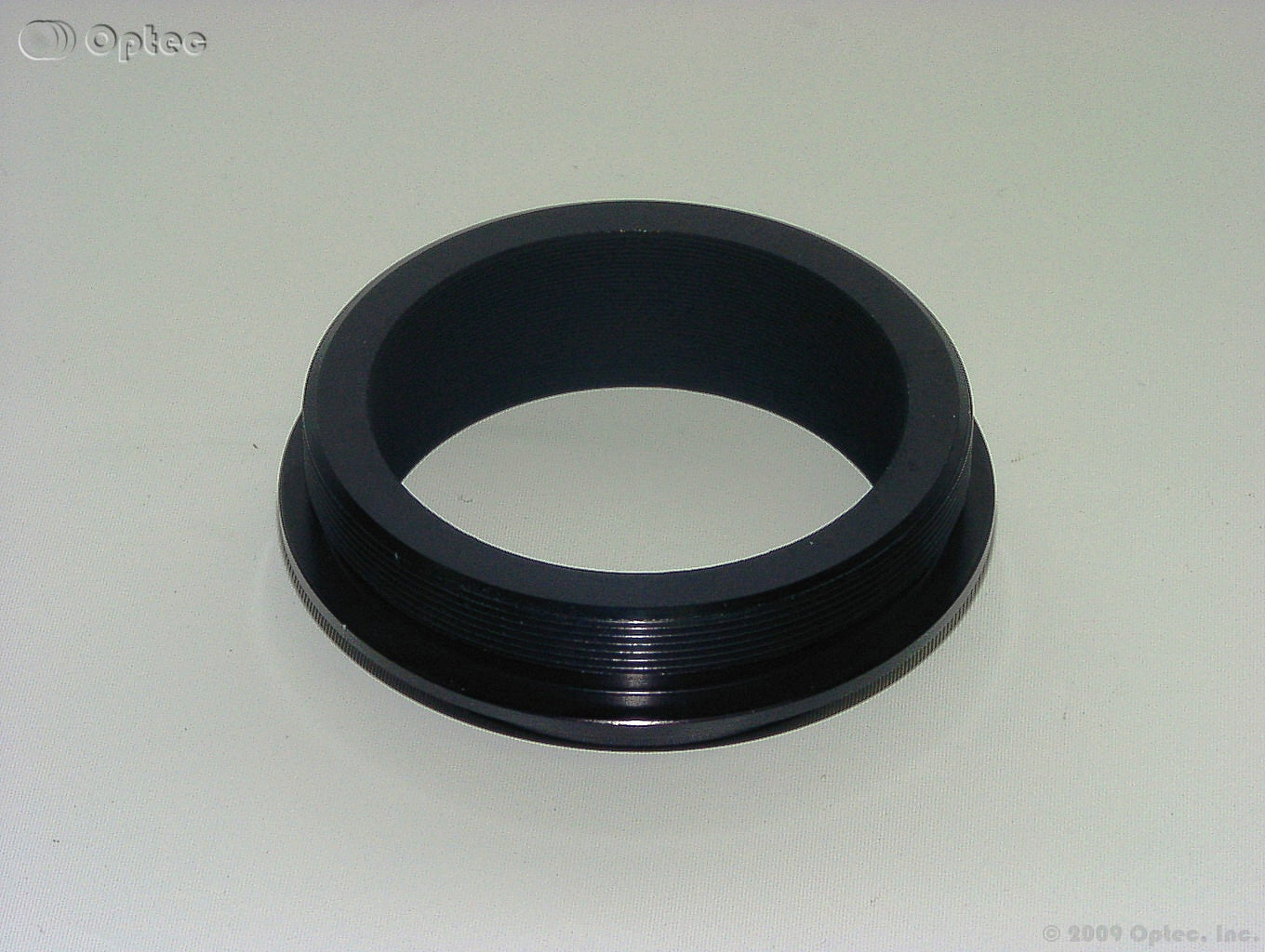

#17458 - AP 2.7" to OPTEC-2400 Telescope Mount

#17458 - AstroPhysics 2.7" MountThe AstroPhysics 2.7-inch mount screws directly into the AP female thread and presents the OPTEC-2400 dovetail for attachment of any device with an OPTEC-2400 receiver.

Specifications

• Overall Height: 0.85" (21.6mm)
• Clear Aperture: 2.15" (54.6mm)
• Weight: 2.2 oz (60 g)
• Back-focus Usage: 0.10" (2.5mm)
