Description
Introducing the new iOptron CEM120 center balance equatorial mount.
Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, we created the iOptron CEM120. It offers the benefits of our revolutionary “center balance” design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 115lbs (52 kg). The “center balance” design’s natural stability is due to its focusing the mount along with payloads weight directly over the center of the pier or tripod. The CEM120s performance is demonstrated by its low periodic tracking error of +/- 3.5 arc seconds and down to <0.15 arc sec RMS with the EC model. Along with the stability aspect, the CEM120 features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes. The CEM 120 will initially be available in two versions, the CEM120 and the CEM120EC (The EC version has high resolution encoders for real time nearly error free tracking, the EC2 version has encoders on both axes).
The CEM120 and CEM120EC are available to order now and will start delivery end of December 2017.
Specifications
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Observatory astrophotography mount ideal for both visual observation and Astrophotography
- Payload of 115 lbs (52 kg) with the mount weight of 57 lbs (26 kg)
- Easy to use and reliable gear clutches
- Adjustable counterweight shaft for 0º latitude operation
- Precision altitude and azimuth adjustment.
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- Polar alignment routine for those who can't see the Pole Star
- Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built in heater
- Permanent periodic error correction (PPEC) or real time PEC (RPEC) for the CEM120EC
- Built-in 32-channel Global Positioning System (GPS)
- Built-in Wi-Fi and LAN for remote operation
- Integrated ST-4 auto guiding port
- Advanced cable management system with more choices
- Spring loaded, individual adjustable Losmandy style saddle
CEM120 Specifications
Manufacture | iOptron |
Model | CEM120/CEM120EC |
Mount Type | CEM (Center balanced EQ Mount) |
Payload (excl. CW) | 52 kg（115 lbs) |
Mount Weight | 26 kg (57 lbs) |
Payload/Mount Weight | 2 |
Latitude Adjustment Range | 0～68° (0.5 arc min devision) |
Azimuth Adjustment Range | ±5° (3 arc min division) |
Tracking Accuracy (PE) | <±3.5 arcsec, < 0.15 arcsec RMS (EC) |
Period | 240 sec |
Right Ascension Worm Wheel | 360 teeth, Ø216 mm, zero backlash |
Declination Worm Wheel | 360 teeth, Ø216 mm, zero backlash |
Worm | Ø26 mm |
Right Ascension Axle | Ø80 mm, steel |
Declination Axle | Ø80 mm, steel |
Right Ascension Bearings | Ø125 mm |
Declination Bearings | Ø125 mm |
Counterweight Shaft | Ø38.1 x 540 mm (SS, none slip, 4.5 kg) |
Counterweight | 10 kg (22 lbs) x2 |
Mounting Base Diameter | 210 x 230 mm |
Motor | precision stepper motor w/128 micor-step |
Resolution | 0.07 arcsec |
Hand Controller | Go2Nova 8407+; 8 line 21 character LCD |
Power | DC 12V, 5A |
Power Consumption | 0.7A (tracking), 1.8A (GOTO) |
Polar Scope | Optional internal electronic polar scope |
Meridian treatment | Stop (0-14° pass), flip |
Zero position | Automatic zero search |
Park position | horizontal, vertical, current, alt/azi input |
Dovetail saddle | Losmandy D, 17.2" (437 mm) |
Level Indicator | YES |
Slew speed | 4°/sec (960x) max. |
PEC | PPEC/Real time PEC (CEM120EC) |
Guiding Port | ST-4 |
Serial Port | RS232, USB, LAN, WIFI |
GPS | YES |

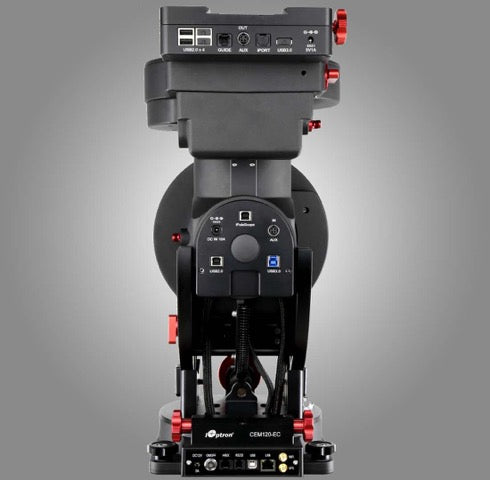

Cable Management | 2xDC12V (1A), DC5V(1A), 2xDC (5A), ST4, 6P6C, 4xUSB2.0, USB3.0 (powered), USB for PS, AUX |
Pier/Tripod | Optional Pier |
