It has a cylindrical recess to accept the mounting post on the bottom of the EQ6R-Pro mount head. An included bolt is used to secure the mount to the adapter plate in a similar fashion to how the EQ6R-Pro normally bolts to the tripod. There is also a pre-drilled hole on the top adapter plate to accept the azimuth-adjustment post. (The post from the original tripod is used on the adapter kit.)
Three stand-off posts keep the top plate clear of the pier itself, allowing easy mounting and adjustment of the EQ6R-Pro. The posts are each 1" in diameter and provide 4" of clearance.

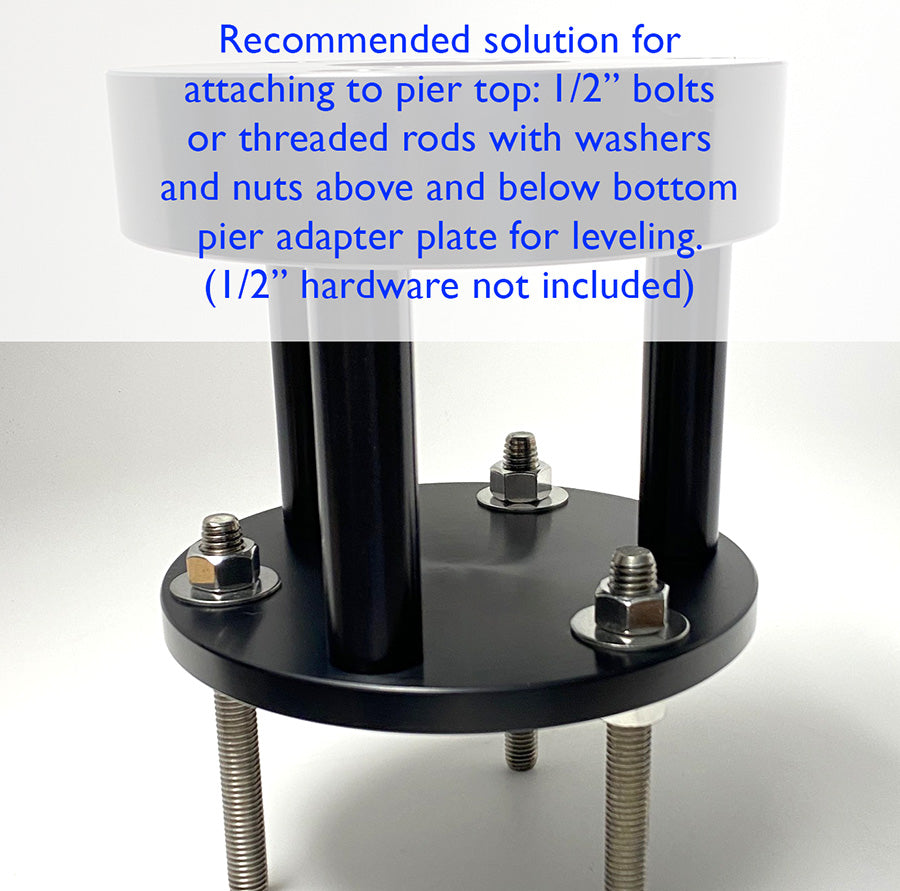

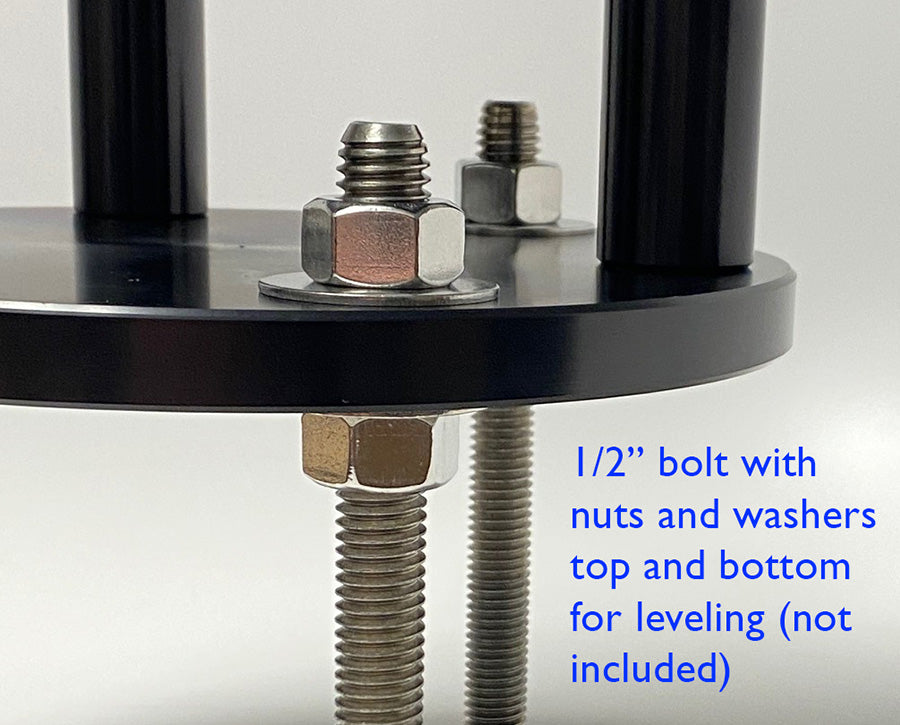

The bottom plate is designed to attach to a pier with three bolts. Three 1/2" bolt holes are provided in the bottom plate, between the stand-off posts.
Specifications
- 7" diameter
- 6" total height
- 1/2" thick bottom plate
- 1-5/8" thick top plate
- Anodized aluminum construction
- Stainless steel hardware
- Made in USA
Base Plate Dimensions for Mounting
