Riccardi Reducer M82 - High Performance Pressure Reducer for Industrial & Home Use | Perfect for Plumbing, HVAC, and Water Filtration Systems
SKU:
97524120
$327.25
$595
45% Off
Delivery & Return: Free shipping on all orders over $50
Delivery Time: 10-15 days international
22 peoples viewing this product right now!
Guranteed safe checkout
Product Description

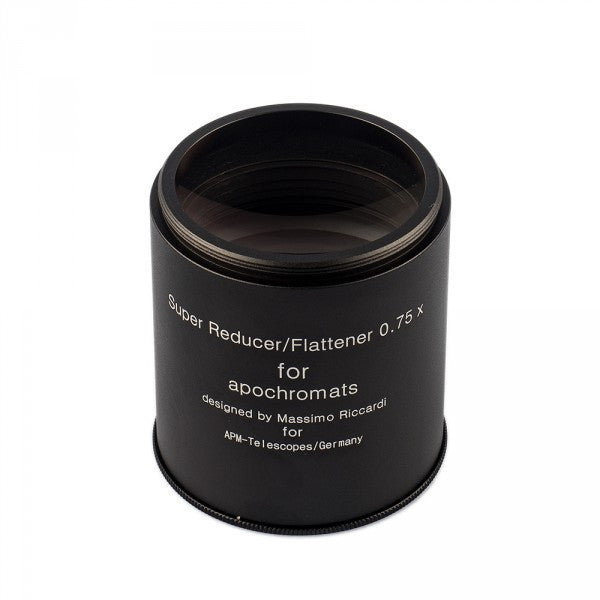

APM-Riccardi Apo-Reducer / Flattener 0,75 x M82 large
Our new reducer, calculated and designed from Riccardi
Massimo Riccardi, famous optical designer from Italy, designed for APM-Telescopes a new 3 element 0.75 x Apo-Reducer/Flattener Corrector for all TMB-APM-LZOS Apochromatic Telescopes. Tests show that it also works on Apos from other manufacturers as well. The reducer shortens the focal length by a quarter and corrects the image circle - thereby converting your telescope into a fast astrograph!
Assembly
The connection to your telescope and camera occurs over an M82 x 1 thread. For the correct adjustment of the reducer/flattener we can offer you an adjustment flange.
Backfocus
Usually, the reducer is screwed onto the focuser. The reducer can also be installed inside the focuser barrel, if the free aperture is larger than 90 mm.
You can find the correct backfocus for your telescope in the enclosed PDF chart (see below). The total optical path of reducer plus backfocus plus focus change is between about 185 mm and 210 mm.
The illumination and correction are made for chips up to full format.
You can find the correct adapter for your telescope camera combination in the enclosed PDF graphic (RiccardiAdaption.pdf).
Delivery contents
- Reducer
- 2 Dustcaps
Specifications:
Connection to camera:
M82 x 1 ID-Thread
Connection to telescope:
M82 x 1 OD-Thread
Coating:
Fully multicoated
Housing material:
Aluminium
Recommended distance from focal plane to connectingthread:
watch PDF
Focal length reduction:
0.75 x
Lenses:
3 Lenses
Optical length without collimation flange:
196.70 mm
Optical length with collimation flange:
207.70 mm
Fully corrected field:
52 mm
Length:
83.7 mm
Diameter:
90 mm
Weight:
35.1 oz (with Dustcaps 38.6 oz)
More information, user manuals, data sheets etc.
