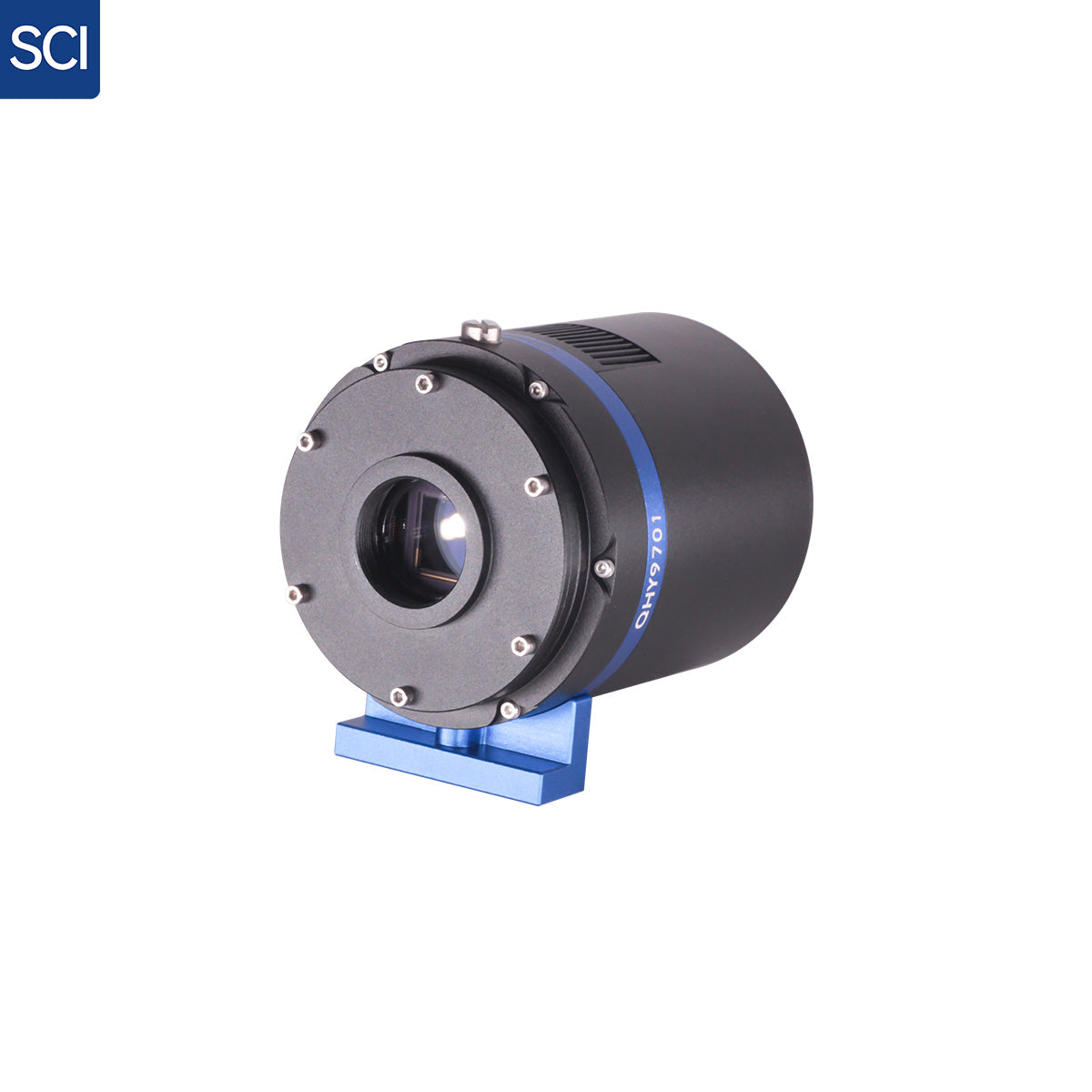

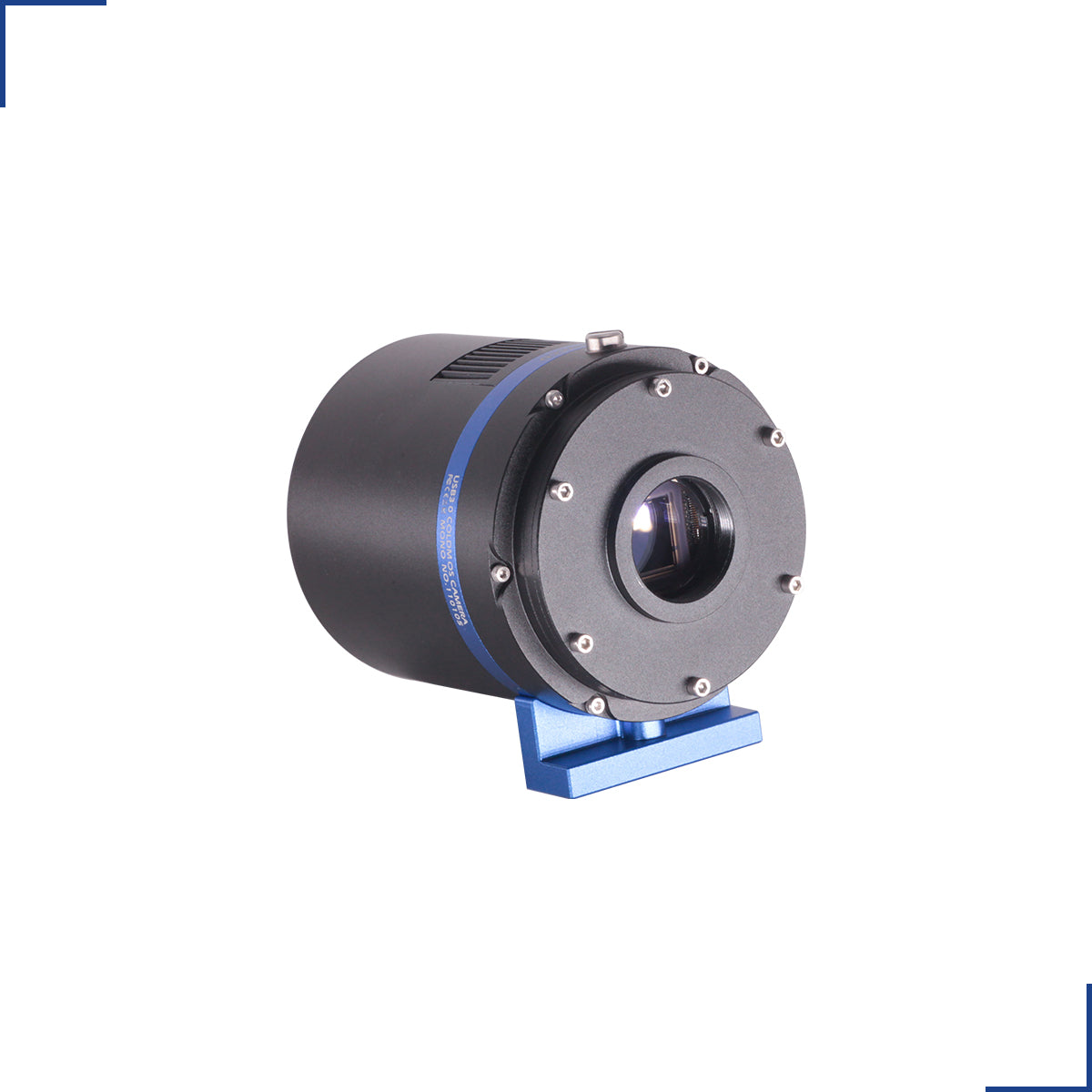

QHY9701 is a cooled scientific CMOS camera with GSENSE9701 back illuminated sCMOS sensor. The CMOS has a very wide spectral response.
With the characteristics of large pixels, ultra-wide spectrum and low noise, it is suitable for high-end microscopy, micro-optics, biofluorescence and other scientific research fields.
It has 89% peak QE at 610nm. The high, wide response from NIR to UV makes the QHY9701 a perfect camera for spectrum analysis and spectrum imaging systems. The QHY9701 is also an ideal scientific CMOS camera for Fluorescence imaging .
With read noise as low as 0.85e-, this camera can capture photons from very dim objects.
Specifications:
| Model | QHY9701 |
| Sensor | Gsense9701 |
| FSI/BSI | BSI |
| Mono/Color | Mono Only |
| Sensor Size | 12.493mm x 9.994mm |
| Effective Pixels | 1.3MP |
| Pixel Sizes | 9.76um x 9.76um |
| Resolution | 1280 (H) x 1024 (V) Effective 1344 (H) x 1054 (V) Readable |
| Shutter Type | Eletric Rolling Shutter |
| Full Well* | 48Ke- |
| Readout Noise* | 1.6e- @ HDR mode 0.85e- @ Low Noise mode |
| Dynamic Range | 89.5dB @ HDR |
| Dark Current* | 40/s/p @ 31 oC 0.08e-/s/p @ -28 oC |
| Peak QE | 89% @ 610nm |
| Max Fps | 21fps @ Low noise |
| 445.5Mbps per lane (Sub-LVDS) 445.5Mbps per lane (MIPI) |
